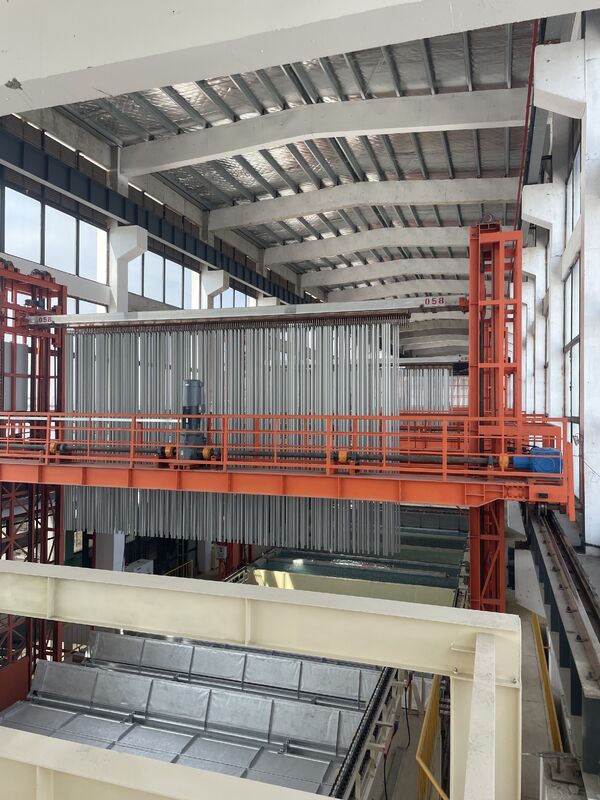

Full-Automatic Vertical Aluminum Anodizing Production Line | Custom Vertical Oxidation Equipment

1. Product Overview

2. Complete Line Composition

• Loading & Unloading Station: Double-station automatic feeding & discharging design, supporting continuous batch feeding to boost hourly output
• Pre-treatment Module: Degreasing, alkaline etching, neutralization & multi-stage pure water rinsing, fully removing surface oil and oxide impurities
• Vertical Sulfuric Acid Anodizing Tank: Large-capacity PP anti-corrosion tank, constant temperature circulation system, high-frequency energy-saving rectifier power supply
• Electrolytic Coloring & Dyeing Module: Intelligent constant current & constant voltage control, stable color rendering without two-end color difference
• Hole Sealing Module: Medium-temperature nickel-free sealing / high-temperature sealing optional, greatly boosting aluminum corrosion & weather resistance
• Ion Exchange Sulfuric Acid Recovery System: Self-developed acid recycling unit, up to 85% acid recovery rate to reduce fresh acid procurement and waste discharge
• PLC Central Intelligent Control Cabinet: Central touch screen monitoring, automatic timing, temperature & liquid medicine replenishment program

3. Core Technical Advantages

1. Superior Surface Finishing Quality




   Vertical hanging full immersion structure makes electrolyte circulate evenly around aluminum profiles, no dead angle of treatment. Oxide film thickness deviation is controlled within ±1μm, completely avoiding scratches and contact marks common in horizontal lines, ideal for high-end decorative aluminum materials.
2. Ultra-High Production Capacity & Space Saving




   Under the same workshop area, the output of vertical anodizing line reaches up to 4 times that of horizontal equipment; vertical layout occupies only 50% floor space of horizontal lines with equal capacity, perfectly suitable for factories with limited plant area.
3. Low Consumption & Eco-Friendly Operation




   Vertical drainage reduces electrolyte drag-out loss by 25%, cutting water, acid and chemical consumption significantly. Matched self-developed sulfuric acid recovery system lowers waste neutralization expenses and meets global environmental emission requirements. High-frequency rectifier saves over 10% power compared with traditional power supplies.
4. Fully Intelligent Automatic Control




   Gantry crane runs with frequency conversion speed regulation, supporting automatic, semi-automatic and manual three operation modes. 24-hour real-time monitoring of temperature, current, time and liquid level; automatic dosing and online film thickness detection, minimizing manual operation and human error.
5. Durable Anti-Corrosion Structure & Customizable Design




   All liquid-contact parts adopt thickened PP and FRP anti-corrosion materials, resisting long-term erosion of high-concentration sulfuric acid with long service life. Tank length, load capacity and processing flow can be tailor-made to match customer production demands.

4. Wide Application Scenarios

• PV solar aluminum frame manufacturers
• Architectural long aluminum extrusion profile factories
• Industrial large-size aluminum alloy structural parts processing plants
• Automotive new energy aluminum component surface finishing workshops
• High-end decorative aluminum hardware & building curtain wall profile manufacturers
